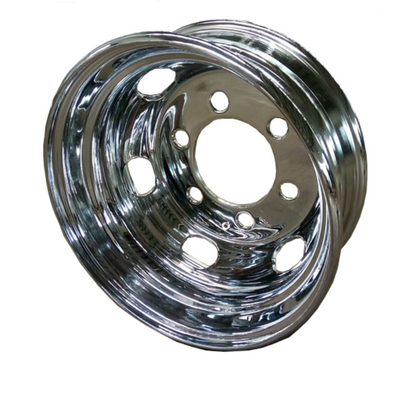

Truck / Bus Custom Wheel Rims Light Truck Wheel Rims 22.5 Inch Wheel Steel Rim 22.5

10 pieces
MOQ
Truck / Bus Custom Wheel Rims Light Truck Wheel Rims 22.5 Inch Wheel Steel Rim 22.5
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Material: Steel
Finishing: Chrome
Truck Model: Howo
OE NO.: NO
Model Number: 8.25-22.5
Size: 8.25-22.5
Color: Sliver
ET: 165
Center hole diameter: 281
Bolt NO.: 10
Bolt diameter: 26
PCD: 335
Type: chrome
Use: truck/bus
Drawings to customize: Yes
Información básica
Model Number: Howo, 8.25-22.5
Pago y Envío Términos
Packaging Details: Package: 1 carton for 1 piece, several carton for 1 pallet.
Descripción de producto
Product Description
Material:Steel
Finishing:Chrome
Truck Model:volvo
Place of Origin:Zhejiang, China
Model Number:22.5*8.25
Color:Sliver
Certification:ISO9001
PCD:335
CBD:281
Disc Thickness:16MM
Offset:165
Bolt holes:10
Diameter:26mm
Type:SR22/1*45Degree
Tyre Size:11R 22.5
Size
8.25-22.5
Conditions
New
production date
15-30 days
Min
10 pieces
Shippment
On buyer
Other size
available
Direction for install
Specific assembly steps of truck tires:
1. Dust the inner tube with talcum powder, put the inner tube and rim lining into the outer tube, inflate and close the valve.
2, put the valve nozzle into the groove, and make the tire from the side of the valve nozzle began to lift and embedded in the
rim, pay attention to the assembly of the valve nozzle not askew.
3. Install the rim ring and place it in the slot of the wheel on the opposite side of the opening of the lock ring. First press
one end of the ring and then press the other end.
4. After the installation, first charge the tire pressure to 49KPa and test whether the tire rings are fully installed before
inflating to the standard value.

  • Precautions for truck tire dismantling:

1. Do not hit rim, lock ring, rim ring or tire after inflating or inflating;
2. The tire should coincide with the mark made before disassembly to ensure the balance of truck driving;
3. Timely check the use and lack of each tire part.Such as: rim ring, lock ring and rim are not allowed to have cracks, sag rust
and dirt, the inner surface of the lock ring should be reliably embedded in the wheel car groove medium;
4. Inflammable materials shall not be used for lubrication.The tire is easy to explode when the tire pressure is unstable. In
summer, the tire burst phenomenon occurs. Flammable lubricant will cause the tire to be natural and finally lead to the occurrence
of fire.

Related Products
Packing&Shipping
One piece for one carton.
Six cartons for one pallet.
Company Introduction
Jiujiu is a professional enterprise integrating the designing, development production and sale of automobile wheels.

 We mainly produce automobile wheels, engineering conveyor wheels, tractor wheels, and other related products. There are five species of products with over 200 varieties, covering 8-57 inches.
